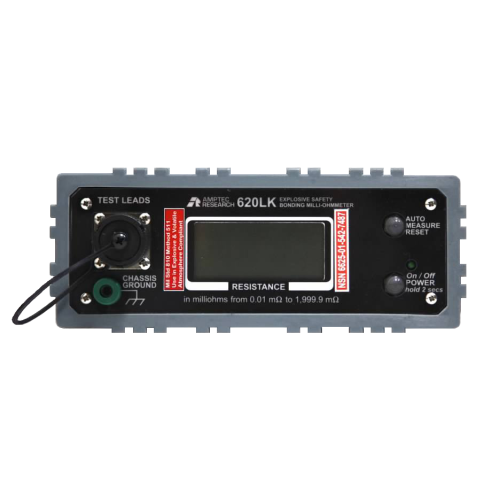

Amptec Research – 620LK Intrinsically Safe Bonding Milliohmmeter

Request Quote

620LK-Data-Sheet-2022

Description



  • Intrinsically safe ohmmeter.
  • The AMPTEC 620LK bonding ohmmeter is an affordable, highly accurate, and intrinsically safe electrical bond tester. This meter is capable of performing bond measurements on a variety of components and metal-to-metal connections. The 620LK has been independently UL-913 certified, ensuring quality and safety at each step of manufacturing. Due to its safety certifications and high level of accuracy, the 620LK meter is the choice bond tester for many commercial airliners, while its sibling the 620UK-B is in countless USAF programs.
  • Range, Resolution, Accuracy, and Current Levels
    Range 200 mΩ 2 Ω
    Nominal Current 100 mA 100 mA
    Resolution .01 mΩ .1 mΩ
    Accuracy ± .05% of reading & range ± .05% of reading & range

General Specifications

Terminal 5-pin Male Trident Display 4 1/2 digit LCD
Update 1 reading per 3 seconds Power 4ea AA 1.5 VDC alkaline batteries
Weight (Unit Only) 3.2 lbs. Dimensions 7.69″ x 7.56″ x 3″
Max. Internal Voltage 6 VDC Open Circuit ~5 VDC
Operating Temperature Range -20° to 50° C Max. Input Voltage 250 VDC
Temperature Coefficient ± .0025% per 1° C Warranty 365 Days

Compatible Accessories

Part Number Description Link
630-100 Padded case for Bonding Ohmmeters and Ground Continuity Testers Click Here
630-406S 5′ spear Kelvin probe set Click Here
630-304 5′ banana jack calibration lead set Click Here
630 Series Leads The 620LK is compatible with our 630 Series probes and leads Click Here
